Replacing your Whirlpool Refrigerator Refrigerator Condenser Fan Motor

Refrigerator Condenser Fan Motor W10822259

Works With Model 8198549!

Rated by 1 customers

Really Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

$211.06

Fix Number:: FIX11723170
Manufacturer #:: W10822259
Manufactured by:: Whirlpool

Works With Model 8198549!

Jump to:

Product Description
Part Videos
Questions and Answers
Related Parts
Installation Instructions
Model Compatibility

Product Description

NOTE: As per the manufacture the part does not come threaded. A self tapping screw will need to be used to make threads.

Works with the following brands:

Whirlpool, KitchenAid, Kenmore, Roper
Works with the following products:
Refrigerator, Ice Maker
Fixes the following symptoms:

Noisy, Fridge too warm, Freezer section too warm, Fridge and Freezer are too warm
Part# W10822259 replaces these:

2166191, 2176336, 2183437, 2188534, 2188537, 4387244

Works with the following brands:: Whirlpool, KitchenAid, Kenmore, Roper
Works with the following products: Refrigerator, Ice Maker
Fixes the following symptoms: Noisy, Fridge too warm, Freezer section too warm, Fridge and Freezer are too warm
Part# W10822259 replaces these:: 2166191, 2176336, 2183437, 2188534, 2188537, 4387244

Videos For installing this part.

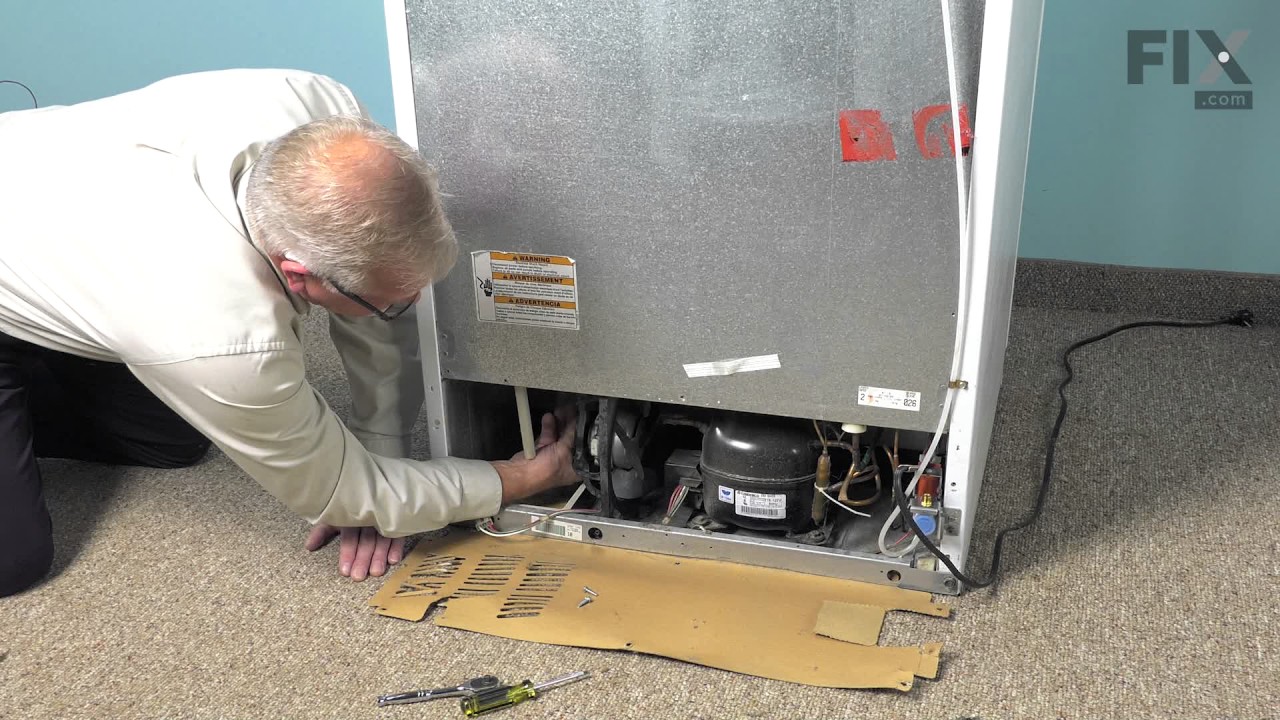

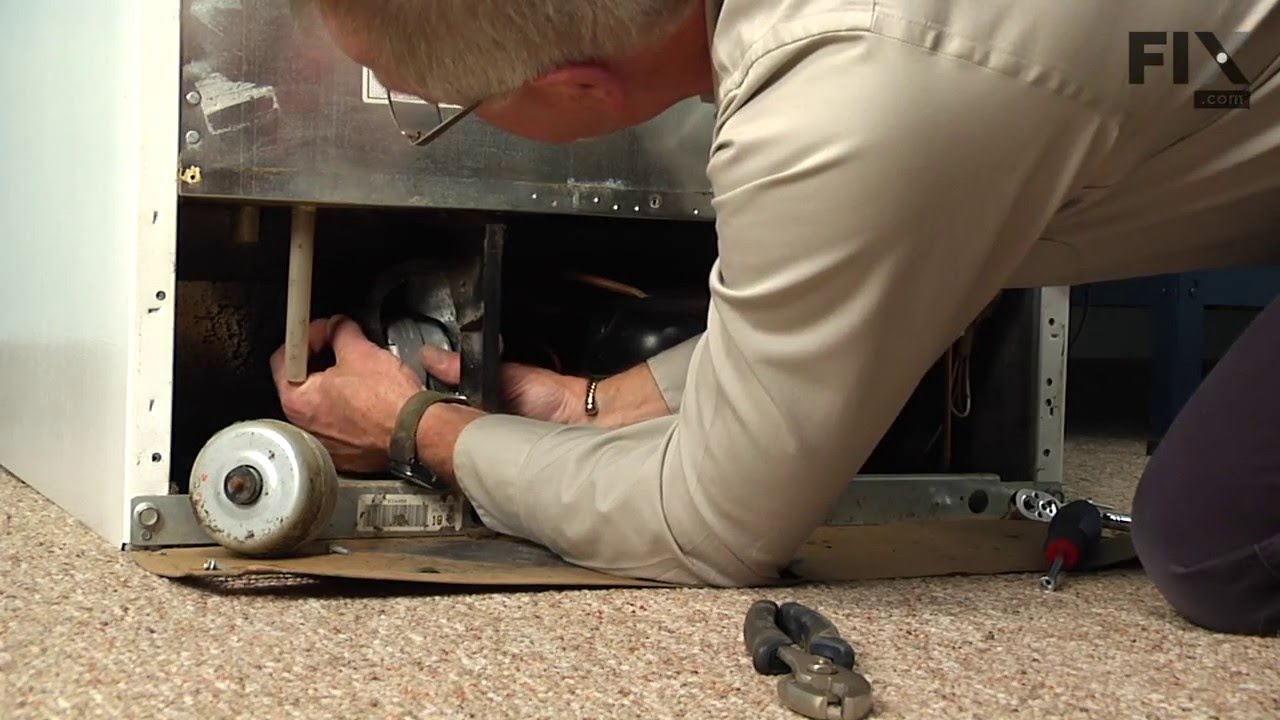

Replacing your Refrigerator Condenser Fan Motor

Questions and Answers

Be the first to ask our experts a question about this part!

Related Parts Additional or alternate parts to consider.

Washer Affresh Cleaner

$12.54

Cleaner

$18.43

Appliance Cleaner

$23.93

Affresh Dishwasher Cleaner Tablets - 6

$19.04

Scratch B Gone Stainless Steel Scratch Remover Kit

$126.64

Stainless Steel Cleaner

$15.56

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 3.8 / 5.0, 1 reviews.

< Prev
1
Next >

Sort by:

Customer:: Richard from Grapevine, TX
Parts Used:: W10822259
Difficulty Level:: Really Easy
Total Repair Time:: 30 - 60 mins
Tools:: Nutdriver, Socket set

The refridgerator wasn't cooling

Unplug the fridge. Removed the back panel using the nut driver. I believe it was a 1/4" or a 5/16". Set the panel aside. The fan is on the left side and is easily accessible. Disconnect the quick connect wire terminal. It has a simple click together design. I used a screw driver to push the tab in and at the same time pulled the terminal ... Read more apart. The terminal on my motor was the same as the terminal on the new motor. The new motor comes with instructions, wire nuts and a new terminal if it isn't the same. The motor was covered in dust, lint, and in my case dog hair. I took the time to clean it off as best as possible - actually prior to buying the new motor. I guess the motor had been locked up by the debris long enough that it overheated and failed. There are 3 self tapping screws on the back side of the motor. I used a 1/4" Ratchet and a 5/16" socket to remove them. The fan simply pulls out toward the front of the fan and there is plenty of room to bring it to the back of the fridge. Once I removed the motor I removed the fan blade with a pair of pliers. It has a flat thin metal nut that is easy to remove. The new motor comes with a replacement nut. Take the fan blade and clean it off. I did this to make sure it was as in balance as possible. The motor is a relatively slow turning motor so balance isn't a big issue. Put the old fan on the new motor and attach with the nut. Just snug the nut hand tight. The nut is such that over tightening could damage the nut. Put the fan back in place and use the new self tapping screws to attach the fan to the bracket. Just a note the fan motor housing isn't threaded so the new self tapping screws go in a little tight. It's not difficult I was simply a little surprised that the housing wasn't tapped prior. I guess it is a money saving idea. Anyway once the screws are in and tightened reconnect the quick connect terminal. Put the back panel back on, plug the fridge back in and you are done. Realistically this takes no more than an hour. I took the back panel off a couple of days before I replaced the motor simply to find out what was wrong and if I could fix it. Once I figured out it was the condenser fan motor I looked on internet using the make a model number and quickly found a DIY video. In the mean time I took a small 10" fan and placed it behind the fridge and let it run until I received the new motor. The little 10" fan kept the fridge going for the 2 days I had to wait.

Read less

3 of 5 people found this instruction helpful.

Was this instruction helpful to you?

< Prev
1
Next >

Model Compatibility

This part works with the following models:

Fix Number: FIX11723170
Manufacturer Part Number: W10822259

Brand	Model Number	Description
Kenmore	10641012100	Refrigerator
Kenmore	10641012101	Refrigerator
Kenmore	10641012104	Refrigerator
Kenmore	10641014100	Refrigerator
Kenmore	10641014101	Refrigerator
Kenmore	10641014104	Refrigerator
Kenmore	10641212100	Refrigerator
Kenmore	10641212101	Refrigerator
Kenmore	10641214100	Refrigerator
Kenmore	10641214101	Refrigerator
Kenmore	10641512100	Refrigerator
Kenmore	10641512101	Refrigerator
Kenmore	10641514100	Refrigerator
Kenmore	10641514101	Refrigerator
Kenmore	10641519100	Refrigerator
Kenmore	10641519101	Refrigerator
Kenmore	1064689482991	Ice Maker
Kenmore	10647021790	Refrigerator
Kenmore	10647021791	Refrigerator
Kenmore	10647022790	Refrigerator
Kenmore	10647022791	Refrigerator
Kenmore	10647028790	Refrigerator
Kenmore	10647028791	Refrigerator
Kenmore	10648062890	Refrigerator
Kenmore	10648062891	Refrigerator
Kenmore	10648062892	Refrigerator
Kenmore	10648062893	Refrigerator
Kenmore	10648062894	Refrigerator
Kenmore	10648062895	Refrigerator
Kenmore	10648064894	Refrigerator
