Range Broil Element W10856603

Works With Model AER3311WAW1!

Rated by 4 customers

?

Easy

30 - 60 mins

Ratings submitted by customers like you who bought this part.

?
$135.84
In Stock
Fix Number:
FIX11731333
Manufacturer #:
W10856603
Manufactured by:
Whirlpool
Works With Model AER3311WAW1!

Jump to:

Product Description

This broil element is found on the roof of the oven.

  • Works with the following brands:
    Whirlpool, Amana, Roper, Maytag
  • Works with the following products:
    Range, Wall Oven
  • Fixes the following symptoms:
    Little to no heat when broiling, Element will not heat, Little to no heat when baking, Oven not heating evenly
  • Part# W10856603 replaces these:
    AP5999255, 3195063, 8053712, 814431, 9757340, W10308476
Works with the following brands:
Whirlpool, Amana, Roper, Maytag
Works with the following products
Range, Wall Oven
Fixes the following symptoms
Little to no heat when broiling, Element will not heat, Little to no heat when baking, Oven not heating evenly
Part Number Cross Reference
Part# W10856603 replaces these:
AP5999255, 3195063, 8053712, 814431, 9757340, W10308476

Videos For installing this part.

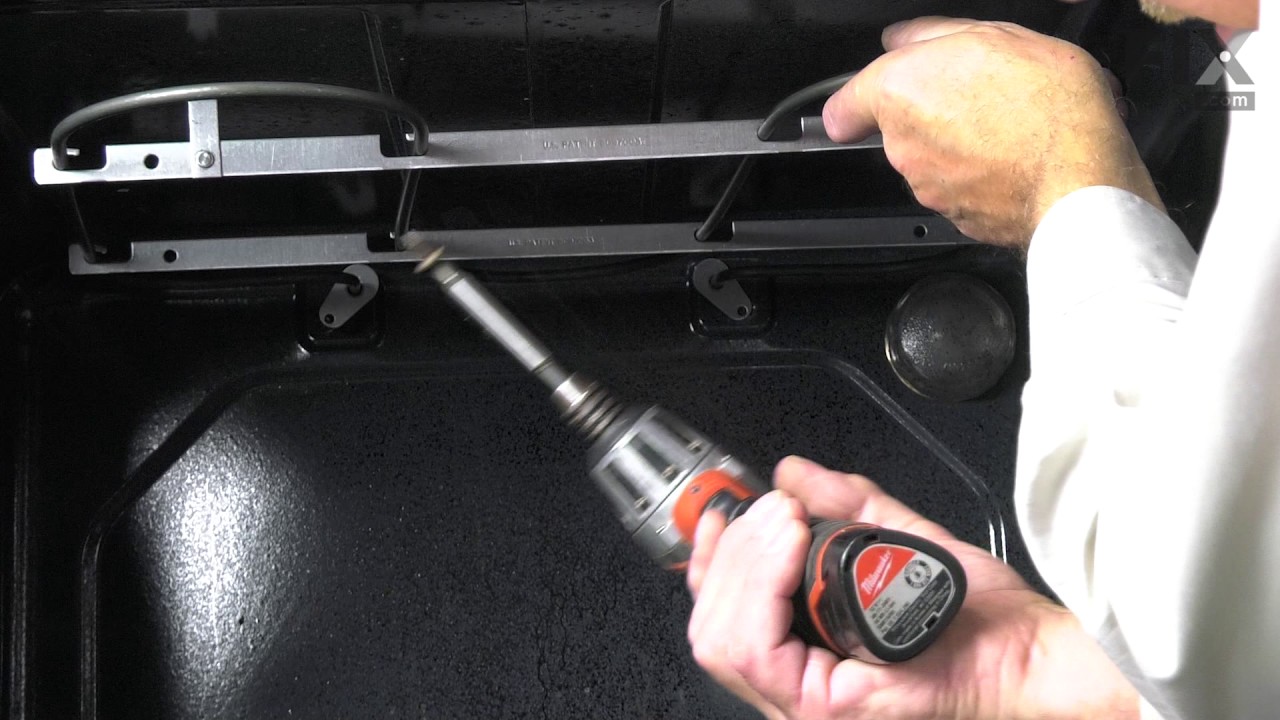

Replacing your Range Broil Element

Replacing your Range Broil Element

Questions and Answers

Be the first to ask our experts a question about this part!

Oven Bake Element
★★★★★
★★★★★
(2)
$46.95
In Stock
Part Number: FIX11752501
The bake element is found the bottom of the oven, and is what provides the heat for cooking and baking. If your oven is not coming up to temperature, is not sustaining a consistent temperature, or is not heating up at al...
Washer Affresh Cleaner
$12.54
In Stock
Part Number: FIX1960673
This front load washer cleaner removes odor-causing residue. Use it once a month and it will keep your machine fresh and clean. Package comes with 3 tablets.
Cleaner
$18.43
In Stock
Part Number: FIX12346712
This cooktop cleaning kit includes a scraper and scrub pad that remove build-up and cooked-on spills without scratching or harming your cooktop surfaces and a non-abrasive cleaner that is safe for all glass and ceramic c...
Appliance Cleaner
$23.93
In Stock
Part Number: FIX16227489
This cleaner is ideal for ventilation, microwaves, cooktops, refrigeration, and stainless steel surfaces. It easily removes burnt-on debris and greasy residues. Can be used on kitchen cabinets, countertops, tile and stee...
Affresh Dishwasher Cleaner Tablets - 6
$19.04
In Stock
Part Number: FIX12345667
Affresh dishwasher Cleaner is specially formulated to help remove limescale and mineral build-up that can be unsightly and could affect your dishwasher's performance. Each tablet is designed to clean inside your machine ...
Scratch B Gone Stainless Steel Scratch Remover Kit
$126.64
In Stock
Part Number: FIX2340672
This product permanently removes scratches, stains and rust from all brushed surfaces on stainless steel appliances, grills, sinks and more. This is for use on true stainless steel products only
Stainless Steel Cleaner
$15.56
In Stock
Part Number: FIX12717775
Our scratch-free, streak-free formula removes fingerprints, smudges, grease, dirt and oil, while protecting and polishing to repel dust and dirt. Use on all stainless steel appliance brands and surfaces. Stainless Steel ...
Stainless Steel Cleaner
$15.56
In Stock
Part Number: FIX12717775
Our scratch-free, streak-free formula removes fingerprints, smudges, grease, dirt and oil, while protecting and polishing to repel dust and dirt. Use on all stainless steel appliance brands and surfaces. Stainless Steel ...
View Less

Installation Instructions Provided by Fix customers like you.

Average Repair Rating: 2.8 / 5.0, 4 reviews.
  • 1
Sort by:
Search filter:
Clear Filter
Your search term must have 3 or more characters.
Keep searches simple. Use keywords, e.g. "leaking", "pump", "broken" or "fit".
Sorry, we couldn't find any existing installation instruction that matched.
Customer:
Ron from BRIGHTON, CO
Parts Used:
W10856603
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Broiler element sparking
1. Unplugged power
2. Removed top back panel, disconnected two wires to broiler element
3. Removed broiler element
4. Cleaned mess behind range
5. Waited for new part
6. Installed new broiler element
7. connected the two wires to the element
8. Plugged range power in
9. Checked to see if the broiler element worked, it did
10. Put back panel on.
11. Cooked a hot meal......finally
Read less
1 person found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Leonard from NORTH ROYALTON, OH
Parts Used:
W10856603
Difficulty Level:
A Bit Difficult
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
Broiler element would not heat up.
Followed the lead instructions on You Tube. The repair would have been much easier and faster if I had removed the oven door 1st.; was hard to reach the back screws. Unfortunately the broiler element still does not heat up (the rest of the oven works fine). So the Whirlpool service tech. is due out here next Wed. July 27th. (This was supposed to correct the problem 99% of the time but did not work here).
Read less
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
James from Dublin, VA
Parts Used:
W10856603
Difficulty Level:
Easy
Total Repair Time:
30 - 60 mins
Tools:
Pliers, Screw drivers
The broiler element burnt into two pieces.
OF COURSE UNPLUG THE OVEN FROM POWER SOURCE AND/OR TURN OFF BREAKERS. The most difficult part of this job was removing and re-installing the oven door. Otherwise, there are 4 screws that hold in the element. (two on the bracket that attaches to the top of the oven and two that attach where the element connects on the rear of the oven. I recommend taking the rear plate off the oven. It is about 10 screws but makes sliding the element wire connections together. Simple job for DIYers with basic skills.
Read less
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
Customer:
Janet from Bandera, TX
Parts Used:
W10856603
Difficulty Level:
A Bit Difficult
Total Repair Time:
1- 2 hours
Tools:
Pliers, Screw drivers
Broiler stopped working
Our first problem was getting the screws loose due to the age of our range. Once the screws were out, there was a problem getting the connections loose. Due to no instructions with the part it was trial and error but we did learn and would recommend taking the back off first and disconnect the element from the back of the range rather th en trying to disconnect it from inside the oven.
Read less
0 of 1 people found this instruction helpful.
Was this instruction helpful to you?
Thank you for voting!
  • 1

Model Compatibility

This part works with the following models:
Fix Number: FIX11731333
Manufacturer Part Number: W10856603
Brand Model Number Description
Amana 4KAER5500AW0 Range - 30" ELECTRIC FREESTANDING RANGE
Amana 4KAER7685EW0 Range - ELECTRIC RANGE
Whirlpool 4KAER7685EW1 Range
Maytag 4KMER7600AW0 Range - 30" ELECTRIC FREESTANDING RANGE
Whirlpool 4KMER7600AW1 Range
Maytag 4KMER7600AW3 Range - Electric Range
Maytag 4KMER7685ES0 Range - ELECTRIC RANGE
Maytag 4KMER7685EW0 Range - ELECTRIC RANGE
Whirlpool 4KMER7685EW1 Range
Whirlpool 4KWFC120MAW0 Range
Whirlpool 4KWFC120MAW3 Range - Whirlpool Range/Stove/Oven 4kwfc120maw3
Whirlpool 4KWFE7685ES0 Range - ELECTRIC RANGE
Whirlpool 4KWFE7685EW0 Range - ELECTRIC RANGE
Whirlpool 4KWFE7685EW1 Range
Whirlpool 4RF302BXEQ1 Range - Freestanding, Electric
Whirlpool 4RF302BXGQ0 Range - Freestanding, Electric
Whirlpool 4RF302BXGQ1 Range - Freestanding, Electric
Whirlpool 4RF302BXKQ0 Range - Freestanding, Electric
Whirlpool 4RF302BXKQ1 Range - Freestanding, Electric
Whirlpool 4RF315PXEQ0 Range - Freestanding, Electric
Whirlpool 4RF315PXGQ0 Range - Freestanding, Electric
Whirlpool 4RF315PXKQ0 Range - Freestanding, Electric
Whirlpool 4RF315PXMQ0 Range - Freestanding, Electric
Amana ACR2303MFW0 Range - ELECTRIC FREE STANDING
Amana ACR2303MFW1 Range - ELECTRIC FREE STANDING
Amana ACR2303MFW7 Range - Electric Range
Amana ACR3130BAW0 Range - ELECTRIC RANGE
Whirlpool ACR4203MNS1 Wall Oven
Amana ACR4303MEB0 Range - ELECTRIC RANGE
Amana ACR4303MES0 Range - ELECTRIC RANGE
